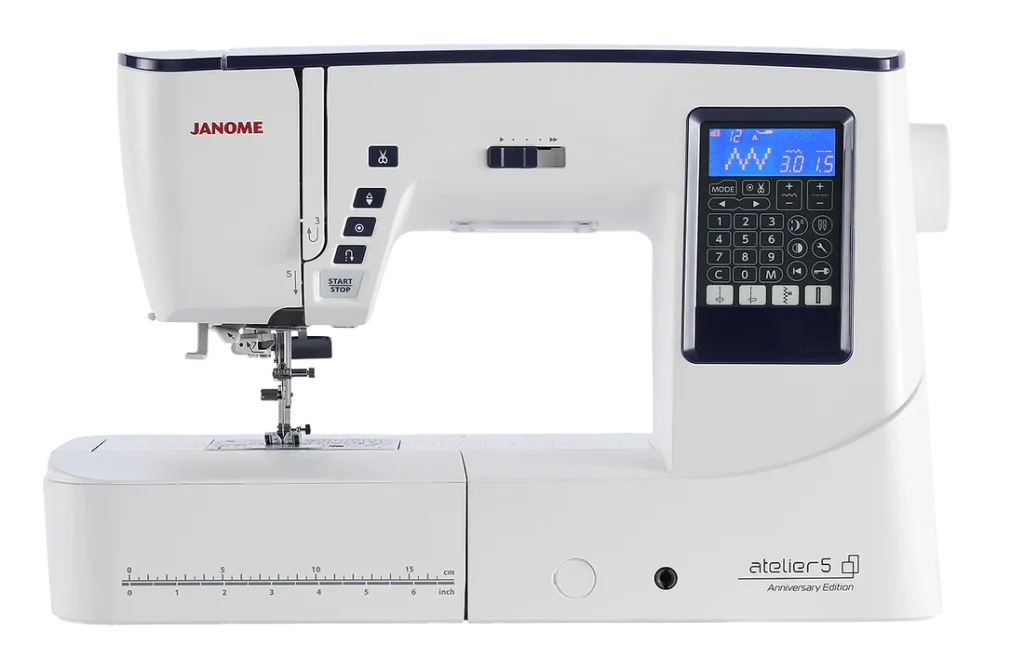

The Janome Atelier 5 10-Year Anniversary Edition celebrates a decade of excellence and innovation in sewing, quilting, and crafting. This special edition model builds on the robust features of the original Atelier 5, adding exclusive enhancements and stylish commemorative details to honor this milestone. It is designed for sewists who demand precision, versatility, and aesthetics.
FULLY COMPUTERISED
MEMORISE STITCH & ALPHABET COMBINATIONS
MAXIMUM SPEED CONTROLLER
PROGRAMMABLE NEEDLE UP/DOWN
LOCK STITCH FEATURE
START / STOP BUTTON
120 BUILT-IN STITCHES
AUTO 1-STEP BUTTONHOLES (7 STYLES)
AUTO NEEDLE THREADER
AUTO THREAD CUTTER
EASY SET BOBBIN
AUTO CUTTER ON BOBBIN WINDER
Designed for every type of sewing, general sewing projects, home décor, fashion, patchwork & quilting; the Atelier 5 AE has 210mm (8.2”) wide arm space to the right of the needle with a height of 120mm (4.7”), giving you plenty of space for those larger projects. With a great range of 170 stitches including a choice of 10 buttonhole styles plus 4 alphabets. Flip up the machine’s top cover to view the huge variety of 9mm wide stitch choices available. The stitch quality is excellent even at speeds of 1,000 stitches per minute! Pivot on corners with the needle up/down feature, use the maximum sewing speed for precision work and to help you gain confidence. Thread the needle with built-in threader, trim off threads with the built-in automatic thread cutter scissors button … plus there is an extra wide table for those larger projects. Tackle almost any sewing challenge!
Included Accessories:
Standard Foot (A) (Zig Zag)
Overcasting Foot (M)
Satin Stitch Foot (F)
Blind Stitch Foot (G)
Zipper Foot (E)
¼” Seam Foot (O) (use 859814001)
Rolled Hem Foot (D)
Auto B/hole Foot (R) (use 859809025)
Stabilizer Plate (Bhole Foot) (859832005)
Button Sewing Foot (T)
Darning Foot (PD-H)
Even Feed Foot
Quilting Guide (for even feed foot)
Quilting Guide Bar
Needle Set
Lint Brush
Seam Ripper/B/hole Opener
Screw Driver (winged)
Extra Wide Table
QR Code For Instructional DVD
Bobbins x 5 one in machine
Extra Spool Pin
Spool Holder Large x 2
Spool Holder Small x 2
Spool Holder Special x 2
Touch Panel Stylus
Needle Plate set on machine Standard
Straight Stitch Needle Plate
Hook Cover Plate (Slide Plate Cover)
Knee Lifter
Semi-hard Cover Grey
Instruction Book
Threading Sticker Guide
C-1036 Foot Control
Power lead
10th Year Anniversary Petite Sewing Kit (Included)
Pouch
Small Scissors
Pin Cushion (Midnight Blue)
Glass Headed Pins x 5
Sewing Clips x 6
Full Specification:
Computerised Sewing Machine
Free Arm/Flat Bed Conversion
Machine Size: W 509 x H 318 x D 220 mm
Work space Length 210mm (8.3”)
Automatic Tension Control
Programmable Needle Up/Down
Maximum Stitch Length: 5mm
Drop Feed
Superior Feed System (SFS) 7 Piece Feed Dogs
Automatic Thread Cutter (Scissors Button )
Knee Lifter Adjustable
170 Stitch Options including Alphabet
10 Auto 1 step Buttonholes
Monogramming -1 font Inc. 9mm Capital letters & numbers
European Accented & Cyrillic Letters
Start/Stop Button
Auto Lock Key
Spool Pin (Horizontal )
Easy Change Needleplate
Easy Set Bobbin
Remote Thread Cutter Port
Horizontal Full Rotary Hook
Top Loading – Category D 9mm (High Shank)
Approximate Machine Weight: 9.9kg.
Work space Height 120mm
Touch Panel LCD
Maximum Sewing Speed 1,000spm
Pattern Elongation - up to 5 times
Speed Control Slider
Maximum Stitch Width: 9mm
Adjustable foot pressure
Built-in Needle Threader
LED Lights 6 in total
Twin Needle capability
Startover Function
Carry Handle – Folding Type
Top Cover ( Flip – up Type )
Cover – Semi Rigid
